Antenna module RAGE ARMOR 400-560

The WARMAX RAGE ARMOR vehicle antenna module is a special electronic warfare device consisting of four quadrifilar antennas that forms a protective dome with a long range, spreading the signal densely and evenly, creating obstacles to communication between the operator and all weapons with electronic equipment.

To connect the module to the RBM, an N-type (female) connector and 3 m long WL-400 coaxial cables are used, allowing the operator to be at a sufficient distance for convenient operation.

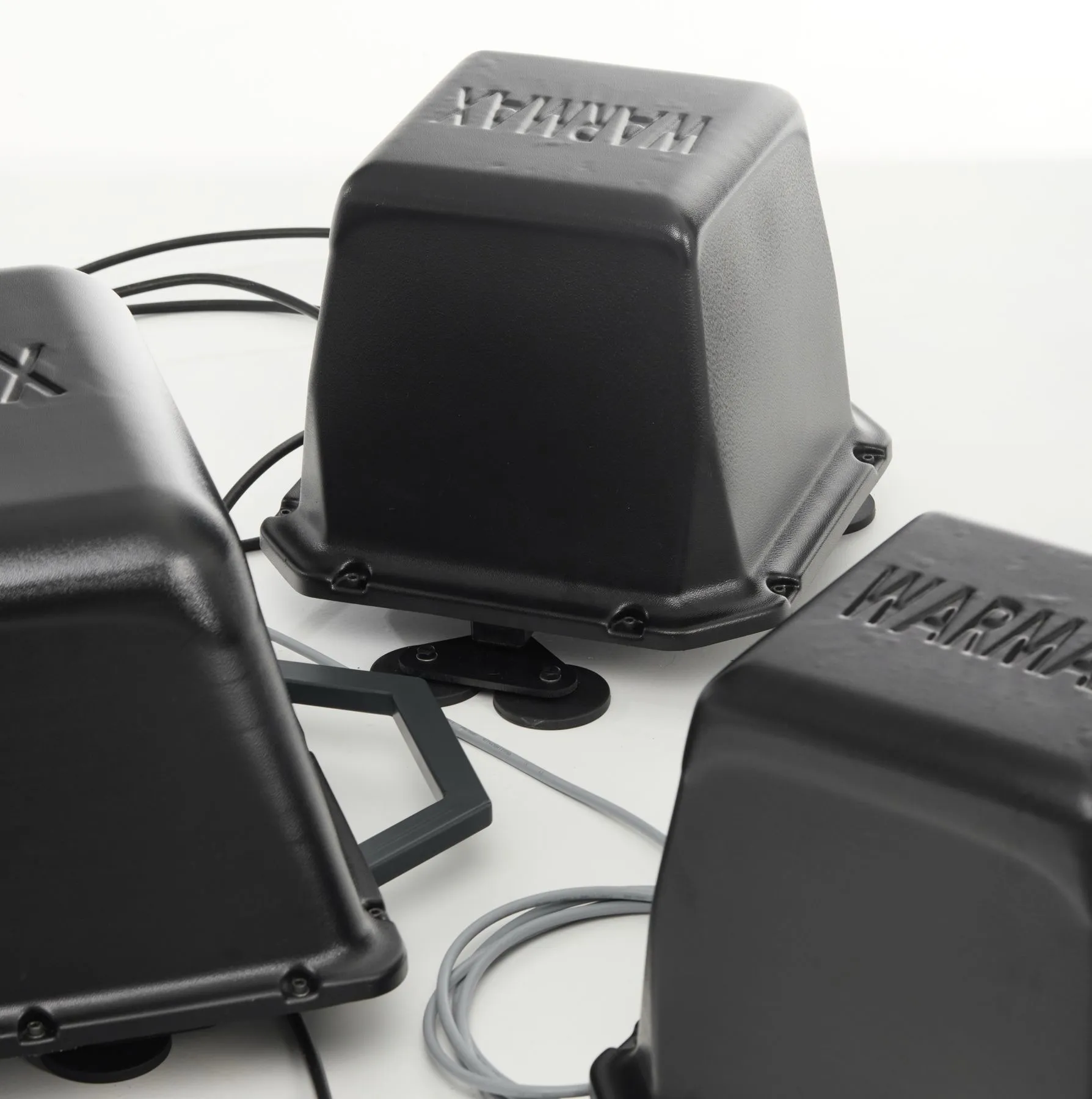

The body made of radio-transparent ABS plastic reliably protects the internal equipment from mechanical damage and weathering. The available handle ensures convenient installation and transportation of the unit, providing the possibility of additional fixation for greater reliability.

‍Packaging:
Antenna module, coaxial cable (WL 400 or equivalent)
Packaging: cardboard box, bubble wrap.

‍

No items found.

Technical characteristics:

Operating frequency range	400, 450, 500, 550, 600
CWS per frequency	1.5, 1.2., 1.2, 1.1, 1.2
Type of antenna	quadrifilar with circular polarization
Connection type	N-type (female)
Type of attachment	anti-vibration, neodymium magnets D88 (4 pcs.)
Adhesion force to the surface	22 kg
Body material	22 kg/ 1 pc
Degree of protection	from IP65
Operating temperature	-20 to +50 °С
Weight	5 kg

‍

For orders and quotation
contact us / Contact us

Review:

Oleg,

Commander of the mobile group of the RAB

We took two modules - WARMAX RAGE ARMOR 310-460 and WARMAX RAGE ARMOR 400-560 - because they perfectly complement each other.

The first thing I liked was the compactness and quick installation. The magnetic mount holds well even at high speeds, no extra wires and hassle. We tested it on a real field trip: the enemy drones started losing connection before they even got on the combat course. The FPV guys sitting on these frequencies simply lost control.

If you have a mobile electronic warfare system on a pickup truck, this bundle of modules will definitely be useful. Conclusion - a normal working tool, without unnecessary gimmicks, but clearly performing its task.
