Antenna module RAGE ARMOR 650-1100

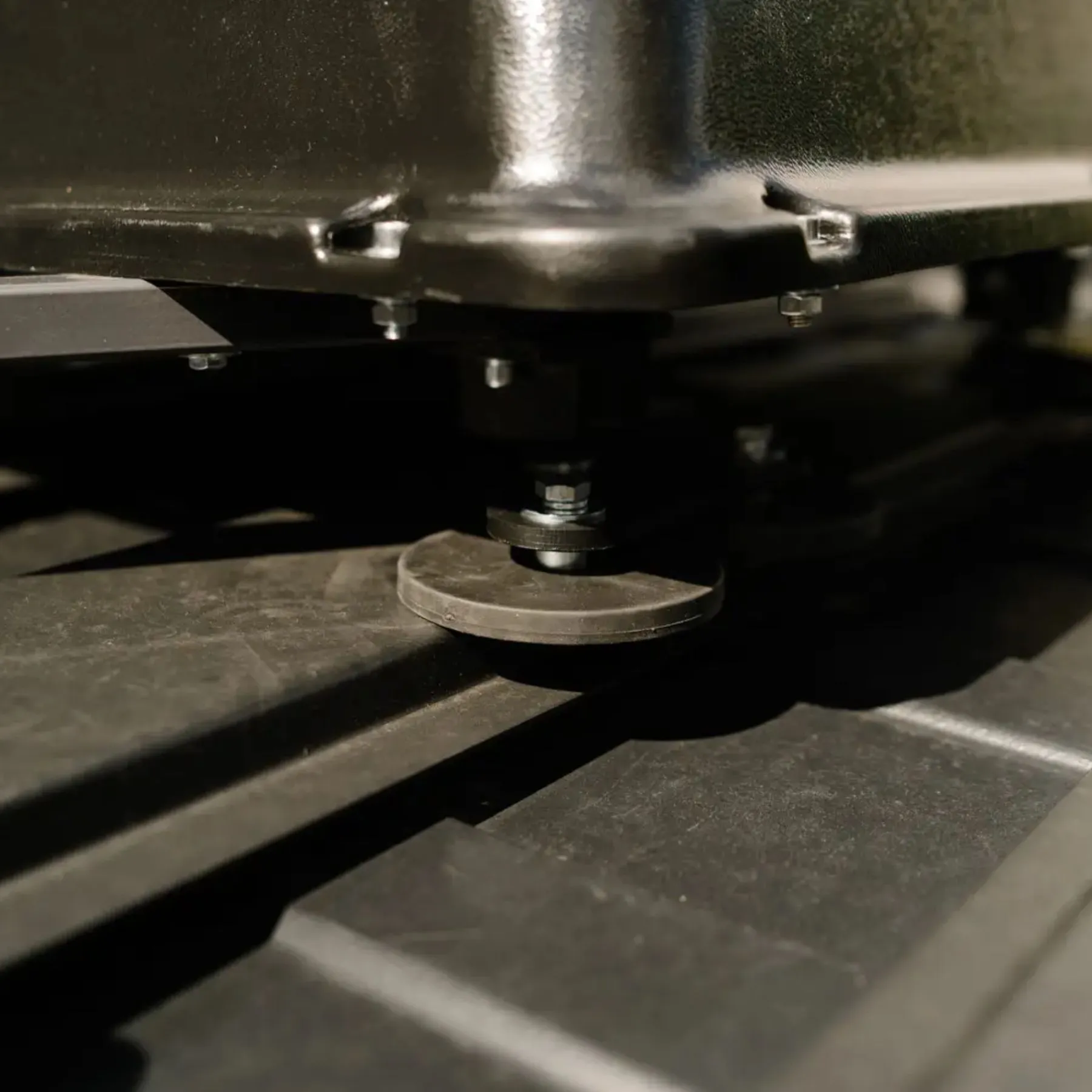

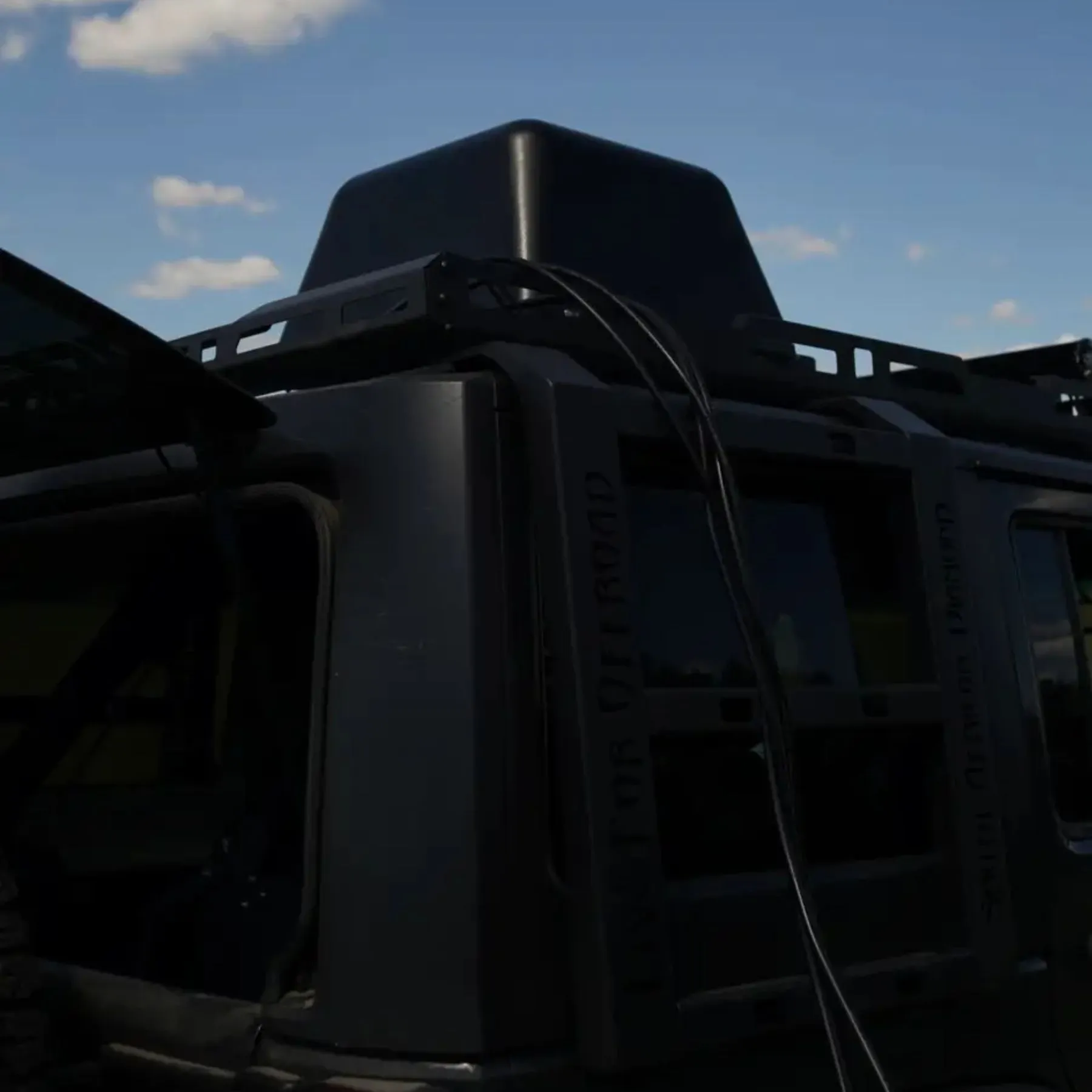

The antenna module can be mounted on the roof or body of any vehicle thanks to a convenient and powerful magnetic mount. This mount consists of eight neodymium magnets that work in a system with four shock absorbers to provide anti-vibration protection for the internal equipment of the antenna module.

The module itself consists of four quadrifilar antennas that spread the signal densely and evenly, forming a protective dome with a long range. To connect the module to the RBM, high-quality LMR-400 coaxial cables with a length of 3 meters are used, which allows the operator to be at a sufficient distance for convenient control.

‍

No items found.

Technical characteristics:

Operating frequency range	650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100 MHz
CWS per frequency	1.4, 1.3., 1.1, 1.1, 1, 1.1, 1.1, 1.1, 1.3, 1.2
Dimensions (inches)	410 mm625 mm830 mm
Cable	LMR-400 made in Italy, 4 pcs, length 3 m, N-type (male)
Fasteners	adjustable anti-vibration feet and 8 neodymium magnets with a grip force of 22 kg each
Weight	8 kg

‍

For orders and quotation
contact us / Contact us

Review:

Igor,

Operator of electronic warfare, NGU brigades

Maximum coverage. Most enemy drones flying in this range no longer have a chance. We have connected it, tested it, and the exhaust is stable. If you need to cover a point and not worry about something flying above you, we take it.
