Terrestrial fiber connection station with external media converter

Fiber optic connection station with an external media converter - capable of converting electrical signals into light signals that are transmitted via fiber optic cable between each other and act as a large extension cable between the drone's flight controller, video transmitter and receiver on the ground. This allows the drone to counteract electronic warfare (EW and EW).

The system provides operation at a distance of 5, 10 or 15 km, depending on the selected coil option.

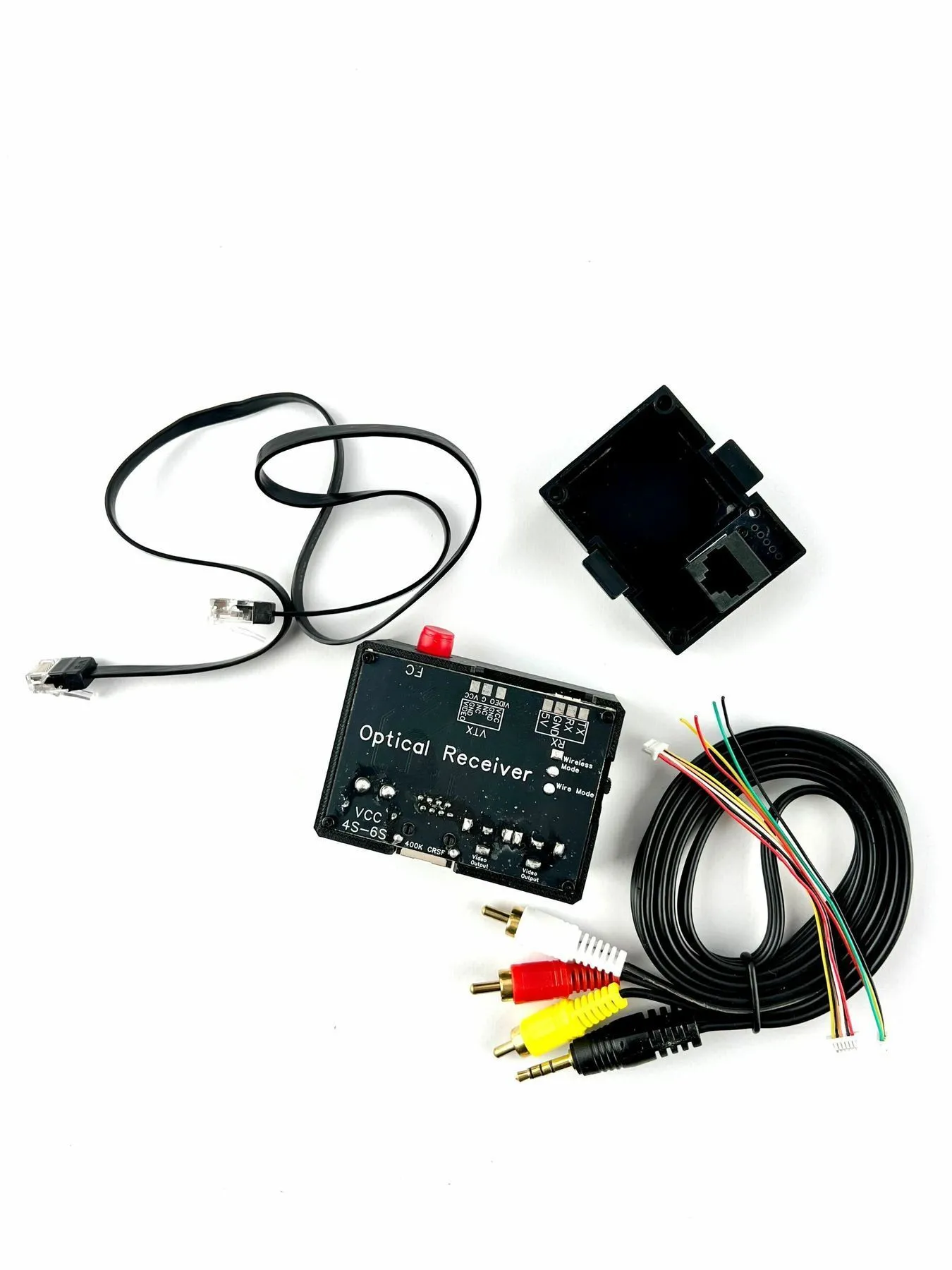

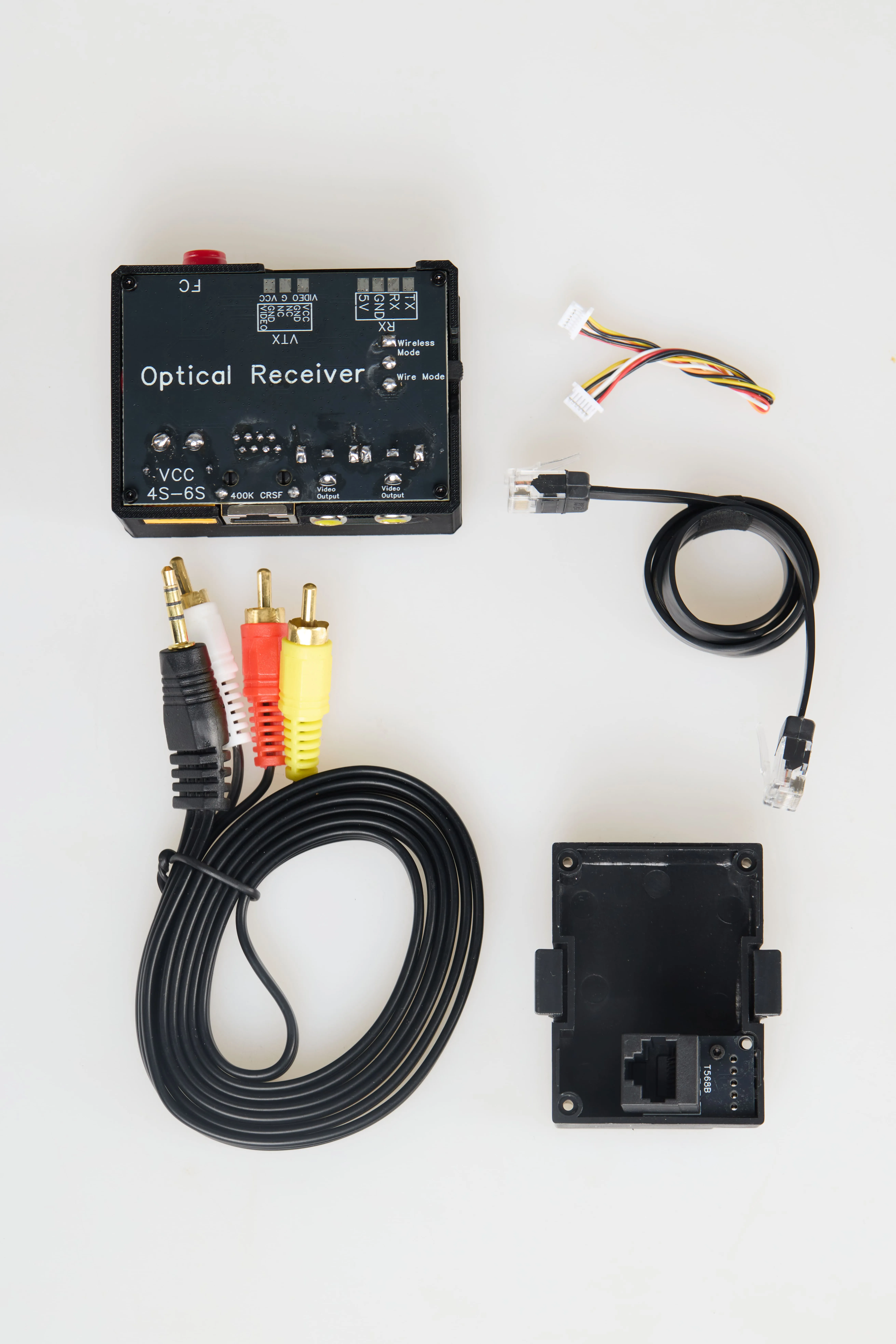

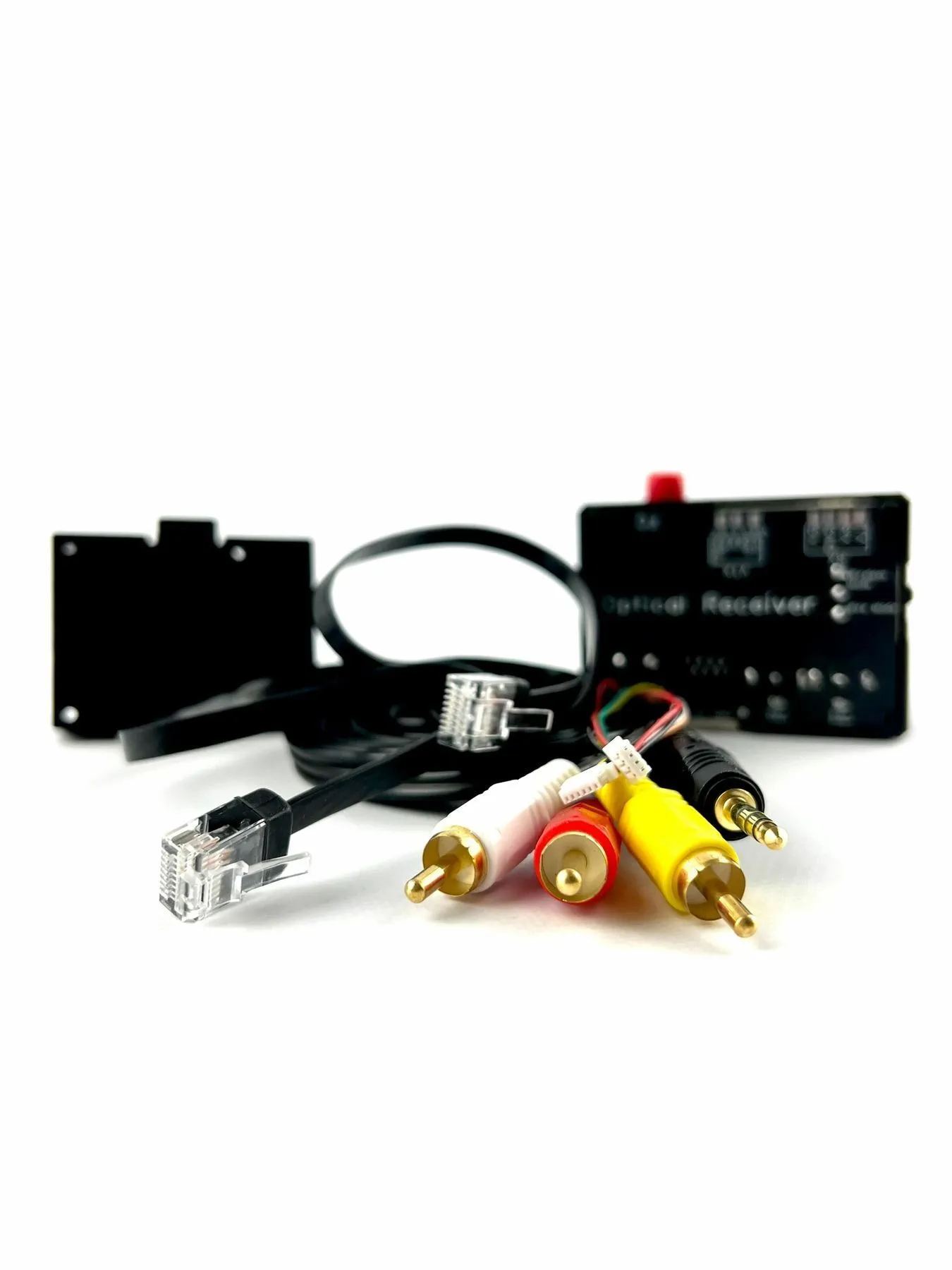

Package contents:
- Module
- AV cable RCA: mini jack for video connection
- RJ.45 to RJ.45 cable
- GH1.25 4 pin cable
- GH1.25 6 pin cable
- RJ.45 Adapter

‍

No items found.

Technical characteristics:

Media converter	external
Support for data transfer	at speeds up to 1 Mbps
Support for standards	TTL and S.BUS used to transmit digital signals
Transmission range	Single mode fiber 0-20 km (single-mode fiber with a transmission distance of up to 20 km)
Data interface	GH1.25 connector for connection
Input voltage	9-18 V
Signal transmission range	25 km
Data transfer protocols	CRSF, ELRS, and TBS
Video.	PAL/NTSC

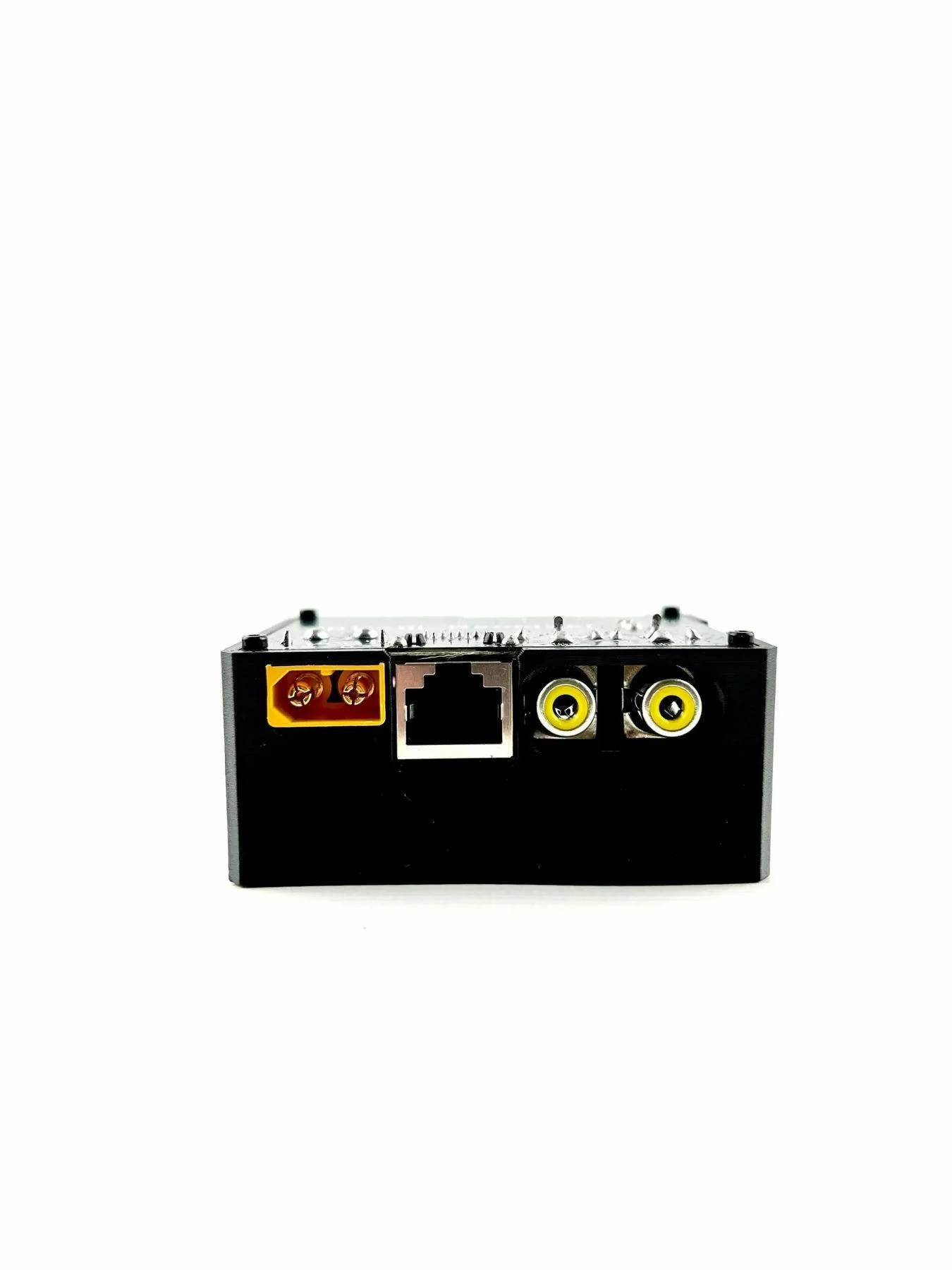

Data connectors	DATA: GH1.25 or RJ.45 and VIDEO: GH1.25 or 2xRCA female
Wavelength	1310 nm / 1550 nm

‍

For orders and quotation
contact us / Contact us

Review:

Vasily,

Signalman, reconnaissance battalion

When you work on the front line and communication is everything, any weak link can cost you your life. We used this station for fiber optics - no breaks, drops, or delays. Everything is clear, the signal is clean, even when the equipment next to it is working at full capacity. In such things, you either trust or regret - this one has justified itself to the fullest.
